osgGA::FlightManipulator Class Reference

FlightManipulator is a MatrixManipulator which provides flight simulator-like updating of the camera position & orientation. More...

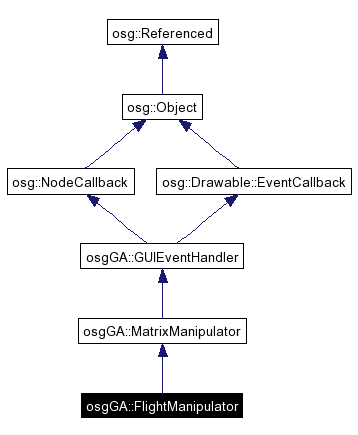

Inheritance diagram for osgGA::FlightManipulator:

[legend]List of all members.


Public Types
enum	YawControlMode { YAW_AUTOMATICALLY_WHEN_BANKED, NO_AUTOMATIC_YAW }
Public Member Functions
	FlightManipulator ()
virtual const char *	className () const
	return the name of the object's class type.
virtual void	setByMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual void	setByInverseMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual osg::Matrixd	getMatrix () const
	get the position of the manipulator as 4x4 Matrix.
virtual osg::Matrixd	getInverseMatrix () const
	get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.
virtual void	setNode (osg::Node *)
	Attach a node to the manipulator, automatically detaching any previously attached node.
virtual const osg::Node *	getNode () const
	Return const node if attached.
virtual osg::Node *	getNode ()
	Return node if attached.
virtual void	home (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Move the camera to the default position.
virtual void	init (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Start/restart the manipulator.
virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Handle events, return true if handled, false otherwise.
virtual void	getUsage (osg::ApplicationUsage &usage) const
	Get the keyboard and mouse usage of this manipulator.
void	setYawControlMode (YawControlMode ycm)
	Configure the Yaw control for the flight model.
void	setModelScale (double in_ms)
double	getModelScale () const
void	setAcceleration (double in_acc)
double	getAcceleration () const
void	setVelocity (double in_vel)
double	getVelocity () const
Protected Member Functions
virtual	~FlightManipulator ()
void	flushMouseEventStack ()
	Reset the internal GUIEvent stack.
void	addMouseEvent (const GUIEventAdapter &ea)
	Add the current mouse GUIEvent to internal stack.
void	computePosition (const osg::Vec3 &eye, const osg::Vec3 &lv, const osg::Vec3 &up)
bool	calcMovement ()
	For the give mouse movement calculate the movement of the camera.
Protected Attributes
osg::ref_ptr< const GUIEventAdapter >	_ga_t1
osg::ref_ptr< const GUIEventAdapter >	_ga_t0
osg::ref_ptr< osg::Node >	_node
double	_modelScale
double	_acceleration
double	_velocity
YawControlMode	_yawMode
osg::Vec3d	_eye
osg::Quat	_rotation
double	_distance

Detailed Description

FlightManipulator is a MatrixManipulator which provides flight simulator-like updating of the camera position & orientation.

By default, the left mouse button accelerates, the right mouse button decelerates, and the middle mouse button (or left and right simultaneously) stops dead.

Member Enumeration Documentation

enum osgGA::FlightManipulator::YawControlMode

Enumeration values:

YAW_AUTOMATICALLY_WHEN_BANKED

NO_AUTOMATIC_YAW

Constructor & Destructor Documentation

osgGA::FlightManipulator::FlightManipulator ( )

virtual osgGA::FlightManipulator::~FlightManipulator ( ) [protected, virtual]

Member Function Documentation

void osgGA::FlightManipulator::addMouseEvent ( const GUIEventAdapter & ea ) [protected]

Add the current mouse GUIEvent to internal stack.

bool osgGA::FlightManipulator::calcMovement ( ) [protected]

For the give mouse movement calculate the movement of the camera.
Return true is camera has moved and a redraw is required.

virtual const char* osgGA::FlightManipulator::className ( ) const [inline, virtual]

return the name of the object's class type.
Must be defined by derived classes.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::FlightManipulator::computePosition ( const osg::Vec3 & eye,

const osg::Vec3 & lv,

const osg::Vec3 & up

) [protected]

void osgGA::FlightManipulator::flushMouseEventStack ( ) [protected]

Reset the internal GUIEvent stack.

double osgGA::FlightManipulator::getAcceleration ( ) const [inline]

virtual osg::Matrixd osgGA::FlightManipulator::getInverseMatrix ( ) const [virtual]

get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.

Implements osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::FlightManipulator::getMatrix ( ) const [virtual]

get the position of the manipulator as 4x4 Matrix.

Implements osgGA::MatrixManipulator.

double osgGA::FlightManipulator::getModelScale ( ) const [inline]

virtual osg::Node* osgGA::FlightManipulator::getNode ( ) [virtual]

Return node if attached.

Reimplemented from osgGA::MatrixManipulator.

virtual const osg::Node* osgGA::FlightManipulator::getNode ( ) const [virtual]

Return const node if attached.

Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::FlightManipulator::getUsage ( osg::ApplicationUsage & usage ) const [virtual]

Get the keyboard and mouse usage of this manipulator.

Reimplemented from osgGA::GUIEventHandler.

double osgGA::FlightManipulator::getVelocity ( ) const [inline]

virtual bool osgGA::FlightManipulator::handle ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Handle events, return true if handled, false otherwise.

Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::FlightManipulator::home ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Move the camera to the default position.
May be ignored by manipulators if home functionality is not appropriate.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::FlightManipulator::init ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Start/restart the manipulator.
FIXME: what does this actually mean? Provide examples.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::FlightManipulator::setAcceleration ( double in_acc ) [inline]

virtual void osgGA::FlightManipulator::setByInverseMatrix ( const osg::Matrixd & matrix ) [inline, virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

virtual void osgGA::FlightManipulator::setByMatrix ( const osg::Matrixd & matrix ) [virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

void osgGA::FlightManipulator::setModelScale ( double in_ms ) [inline]

virtual void osgGA::FlightManipulator::setNode ( osg::Node * ) [virtual]

Attach a node to the manipulator, automatically detaching any previously attached node.
setNode(NULL) detaches previous nodes. May be ignored by manipulators which do not require a reference model.
Reimplemented from osgGA::MatrixManipulator.
