osgGA::TrackballManipulator Class Reference

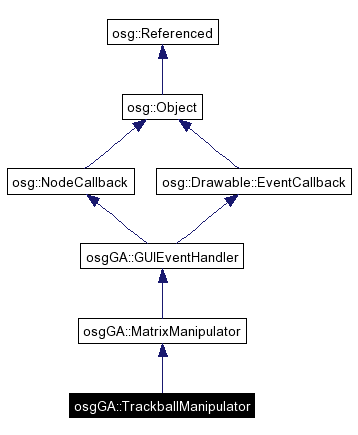

Inheritance diagram for osgGA::TrackballManipulator:

[legend]List of all members.


Public Member Functions
	TrackballManipulator ()
virtual const char *	className () const
	return the name of the object's class type.
virtual void	setByMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual void	setByInverseMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual osg::Matrixd	getMatrix () const
	get the position of the manipulator as 4x4 Matrix.
virtual osg::Matrixd	getInverseMatrix () const
	get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.
virtual osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const
	Get the FusionDistanceMode.
virtual float	getFusionDistanceValue () const
	Get the FusionDistanceValue.
virtual void	setNode (osg::Node *)
	Attach a node to the manipulator.
virtual const osg::Node *	getNode () const
	Return node if attached.
virtual osg::Node *	getNode ()
	Return node if attached.
virtual void	home (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Move the camera to the default position.
virtual void	home (double)
	Move the camera to the default position.
virtual void	init (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Start/restart the manipulator.
virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &us)
	handle events, return true if handled, false otherwise.
virtual void	getUsage (osg::ApplicationUsage &usage) const
	Get the keyboard and mouse usage of this manipulator.
void	setMinimumZoomScale (double minimumZoomScale)
	set the minimum distance (as ratio) the eye point can be zoomed in towards the center before the center is pushed forward.
double	getMinimumZoomScale () const
	get the minimum distance (as ratio) the eye point can be zoomed in
void	setCenter (const osg::Vec3d &center)
	Set the center of the trackball.
const osg::Vec3d &	getCenter () const
	Get the center of the trackball.
void	setRotation (const osg::Quat &rotation)
	Set the rotation of the trackball.
const osg::Quat &	getRotation () const
	Get the rotation of the trackball.
void	setDistance (double distance)
	Set the distance of the trackball.
double	getDistance () const
	Get the distance of the trackball.
void	setTrackballSize (float size)
	Set the size of the trackball.
float	getTrackballSize () const
	Get the size of the trackball.
Protected Member Functions
virtual	~TrackballManipulator ()
void	flushMouseEventStack ()
	Reset the internal GUIEvent stack.
void	addMouseEvent (const GUIEventAdapter &ea)
	Add the current mouse GUIEvent to internal stack.
void	computePosition (const osg::Vec3 &eye, const osg::Vec3 &lv, const osg::Vec3 &up)
bool	calcMovement ()
	For the give mouse movement calculate the movement of the camera.
void	trackball (osg::Vec3 &axis, float &angle, float p1x, float p1y, float p2x, float p2y)
float	tb_project_to_sphere (float r, float x, float y)
bool	isMouseMoving ()
	Check the speed at which the mouse is moving.
Protected Attributes
osg::ref_ptr< const GUIEventAdapter >	_ga_t1
osg::ref_ptr< const GUIEventAdapter >	_ga_t0
osg::ref_ptr< osg::Node >	_node
double	_modelScale
double	_minimumZoomScale
bool	_thrown
osg::Vec3d	_center
osg::Quat	_rotation
double	_distance
float	_trackballSize

Constructor & Destructor Documentation

osgGA::TrackballManipulator::TrackballManipulator ( )

virtual osgGA::TrackballManipulator::~TrackballManipulator ( ) [protected, virtual]

Member Function Documentation

void osgGA::TrackballManipulator::addMouseEvent ( const GUIEventAdapter & ea ) [protected]

Add the current mouse GUIEvent to internal stack.

bool osgGA::TrackballManipulator::calcMovement ( ) [protected]

For the give mouse movement calculate the movement of the camera.
Return true is camera has moved and a redraw is required.

virtual const char* osgGA::TrackballManipulator::className ( ) const [inline, virtual]

return the name of the object's class type.
Must be defined by derived classes.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::TrackballManipulator::computePosition ( const osg::Vec3 & eye,

const osg::Vec3 & lv,

const osg::Vec3 & up

) [protected]

void osgGA::TrackballManipulator::flushMouseEventStack ( ) [protected]

Reset the internal GUIEvent stack.

const osg::Vec3d& osgGA::TrackballManipulator::getCenter ( ) const [inline]

Get the center of the trackball.

double osgGA::TrackballManipulator::getDistance ( ) const [inline]

Get the distance of the trackball.

virtual osgUtil::SceneView::FusionDistanceMode osgGA::TrackballManipulator::getFusionDistanceMode ( ) const [inline, virtual]

Get the FusionDistanceMode.
Used by SceneView for setting up setereo convergence.
Reimplemented from osgGA::MatrixManipulator.

virtual float osgGA::TrackballManipulator::getFusionDistanceValue ( ) const [inline, virtual]

Get the FusionDistanceValue.
Used by SceneView for setting up setereo convergence.
Reimplemented from osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::TrackballManipulator::getInverseMatrix ( ) const [virtual]

get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.

Implements osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::TrackballManipulator::getMatrix ( ) const [virtual]

get the position of the manipulator as 4x4 Matrix.

Implements osgGA::MatrixManipulator.

double osgGA::TrackballManipulator::getMinimumZoomScale ( ) const [inline]

get the minimum distance (as ratio) the eye point can be zoomed in

virtual osg::Node* osgGA::TrackballManipulator::getNode ( ) [virtual]

Return node if attached.

Reimplemented from osgGA::MatrixManipulator.

virtual const osg::Node* osgGA::TrackballManipulator::getNode ( ) const [virtual]

Return node if attached.

Reimplemented from osgGA::MatrixManipulator.

const osg::Quat& osgGA::TrackballManipulator::getRotation ( ) const [inline]

Get the rotation of the trackball.

float osgGA::TrackballManipulator::getTrackballSize ( ) const [inline]

Get the size of the trackball.

virtual void osgGA::TrackballManipulator::getUsage ( osg::ApplicationUsage & usage ) const [virtual]

Get the keyboard and mouse usage of this manipulator.

Reimplemented from osgGA::GUIEventHandler.

virtual bool osgGA::TrackballManipulator::handle ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

handle events, return true if handled, false otherwise.

Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::TrackballManipulator::home ( double ) [virtual]

Move the camera to the default position.
This version does not require GUIEventAdapter and GUIActionAdapter so may be called from somewhere other than a handle() method in GUIEventHandler. Application must be aware of implications.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::TrackballManipulator::home ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Move the camera to the default position.
May be ignored by manipulators if home functionality is not appropriate.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::TrackballManipulator::init ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Start/restart the manipulator.

Reimplemented from osgGA::MatrixManipulator.

bool osgGA::TrackballManipulator::isMouseMoving ( ) [protected]

Check the speed at which the mouse is moving.
If speed is below a threshold then return false, otherwise return true.

virtual void osgGA::TrackballManipulator::setByInverseMatrix ( const osg::Matrixd & matrix ) [inline, virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

virtual void osgGA::TrackballManipulator::setByMatrix ( const osg::Matrixd & matrix ) [virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

void osgGA::TrackballManipulator::setCenter ( const osg::Vec3d & center ) [inline]

Set the center of the trackball.

void osgGA::TrackballManipulator::setDistance ( double distance ) [inline]

Set the distance of the trackball.

void osgGA::TrackballManipulator::setMinimumZoomScale ( double minimumZoomScale ) [inline]

set the minimum distance (as ratio) the eye point can be zoomed in towards the center before the center is pushed forward.

virtual void osgGA::TrackballManipulator::setNode ( osg::Node * ) [virtual]

Attach a node to the manipulator.
Automatically detaches previously attached node. setNode(NULL) detaches previously nodes. Is ignored by manipulators which do not require a reference model.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::TrackballManipulator::setRotation ( const osg::Quat & rotation ) [inline]

Set the rotation of the trackball.

void osgGA::TrackballManipulator::setTrackballSize ( float size )

Set the size of the trackball.

float osgGA::TrackballManipulator::tb_project_to_sphere ( float r,

float x,

float y

) [protected]

void osgGA::TrackballManipulator::trackball ( osg::Vec3 & axis,

float & angle,

float p1x,

float p1y,

float p2x,

float p2y

) [protected]
