osgGA::UFOManipulator Class Reference

A UFO manipulator driven with keybindings. More...

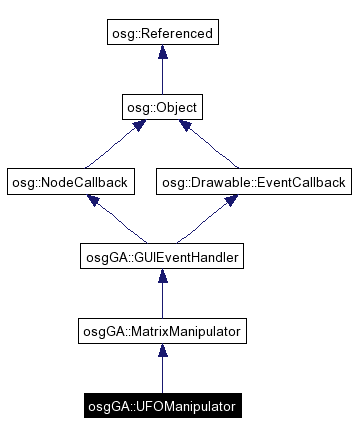

Inheritance diagram for osgGA::UFOManipulator:

[legend]List of all members.


Public Member Functions
	UFOManipulator ()
	Default constructor.
virtual const char *	className () const
	return className
virtual void	setByMatrix (const osg::Matrixd &matrix)
	Set the current position with a matrix.
virtual void	setByInverseMatrix (const osg::Matrixd &invmat)
	Set the current position with the invers matrix.
virtual osg::Matrixd	getMatrix () const
	Get the current viewmatrix.
virtual osg::Matrixd	getInverseMatrix () const
	Get the current inverse view matrix.
virtual void	setNode (osg::Node *node)
	Set the subgraph this manipulator is driving the eye through.
virtual const osg::Node *	getNode () const
	Get the root node of the subgraph this manipulator is driving the eye through (const).
virtual osg::Node *	getNode ()
	Get the root node of the subgraph this manipulator is driving the eye through.
virtual void	computeHomePosition ()
	Computes the home position based on the extents and scale of the scene graph rooted at node.
virtual void	home (const osgGA::GUIEventAdapter &, osgGA::GUIActionAdapter &)
	Sets the viewpoint matrix to the home position.
void	home (double)
	Move the camera to the default position.
virtual void	init (const GUIEventAdapter &,GUIActionAdapter &)
	Start/restart the manipulator.
bool	handle (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &aa)
	Handles incoming osgGA events.
void	getUsage (osg::ApplicationUsage &usage) const
	Reports Usage parameters to the application.
void	getCurrentPositionAsLookAt (osg::Vec3 &eye, osg::Vec3 &center, osg::Vec3 &up)
	Report the current position as LookAt vectors.
void	setMinHeight (double in_min_height)
double	getMinHeight () const
void	setMinDistance (double in_min_dist)
double	getMinDistance () const
void	setForwardSpeed (double in_fs)
double	getForwardSpeed () const
void	setSideSpeed (double in_ss)
double	getSideSpeed () const
void	setRotationSpeed (double in_rot_speed)
double	getRotationSpeed () const
Protected Member Functions
void	_stop ()
void	_keyDown (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)
void	_keyUp (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)
void	_frame (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)
void	_adjustPosition ()
Protected Attributes
osg::ref_ptr< osg::Node >	_node
float	_viewAngle
osg::Matrixd	_matrix
osg::Matrixd	_inverseMatrix
osg::Matrixd	_offset
double	_minHeightAboveGround
double	_minDistanceInFront
double	_speedEpsilon
double	_forwardSpeed
double	_sideSpeed
double	_upSpeed
double	_speedAccelerationFactor
double	_speedDecelerationFactor
bool	_decelerateUpSideRate
double	_directionRotationEpsilon
double	_directionRotationRate
double	_directionRotationAcceleration
double	_directionRotationDeceleration
double	_viewOffsetDelta
double	_pitchOffsetRate
double	_pitchOffset
double	_yawOffsetRate
double	_yawOffset
double	_t0
double	_dt
osg::Vec3	_direction
osg::Vec3	_position
bool	_shift
bool	_ctrl
bool	_decelerateOffsetRate
bool	_straightenOffset

Detailed Description

A UFO manipulator driven with keybindings.

The UFOManipulator is better suited for applications that employ architectural walk-throughs, or situations where the eyepoint motion model must move slowly, deliberately and well controlled.

The UFO Manipulator allows the following movements with the listed Key combinations:

Parameters:

UpArrow	Acceleration forward.
DownArrow	Acceleration backward (or deceleration forward).
LeftArrow	Rotate view and direction of travel to the left.
RightArrow	Rotate view and direction of travel to the right.
SpaceBar	Brake. Gradually decelerates linear and rotational movement.
Shift/UpArrow	Accelerate up.
Shift/DownArrow	Accelerate down.
Shift/LeftArrow	Accelerate (linearly) left.
Shift/RightArrow	Accelerate (linearly) right.
Shift/SpaceBar	Instant brake. Immediately stop all linear and rotational movement.

When the Shift key is released, up, down, linear left and/or linear right movement is decelerated.

Parameters:

Ctrl/UpArrow	Rotate view (but not direction of travel) up.
Ctrl/DownArrow	Rotate view (but not direction of travel) down.
Ctrl/LeftArrow	Rotate view (but not direction of travel) left.
Ctrl/RightArrow	Rotate view (but not direction of travel) right.
Ctrl/Return	Straightens out the view offset.

Constructor & Destructor Documentation

osgGA::UFOManipulator::UFOManipulator ( )

Default constructor.

Member Function Documentation

void osgGA::UFOManipulator::_adjustPosition ( ) [protected]

void osgGA::UFOManipulator::_frame ( const osgGA::GUIEventAdapter & ea,

osgGA::GUIActionAdapter &

) [protected]

void osgGA::UFOManipulator::_keyDown ( const osgGA::GUIEventAdapter & ea,

osgGA::GUIActionAdapter &

) [protected]

void osgGA::UFOManipulator::_keyUp ( const osgGA::GUIEventAdapter & ea,

osgGA::GUIActionAdapter &

) [protected]

void osgGA::UFOManipulator::_stop ( ) [protected]

virtual const char* osgGA::UFOManipulator::className ( ) const [virtual]

return className

Returns:
returns constant "UFO"

Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::UFOManipulator::computeHomePosition ( ) [virtual]

Computes the home position based on the extents and scale of the scene graph rooted at node.

Reimplemented from osgGA::MatrixManipulator.

void osgGA::UFOManipulator::getCurrentPositionAsLookAt ( osg::Vec3 & eye,

osg::Vec3 & center,

osg::Vec3 & up

)

Report the current position as LookAt vectors.

double osgGA::UFOManipulator::getForwardSpeed ( ) const [inline]

virtual osg::Matrixd osgGA::UFOManipulator::getInverseMatrix ( ) const [virtual]

Get the current inverse view matrix.

Implements osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::UFOManipulator::getMatrix ( ) const [virtual]

Get the current viewmatrix.

Implements osgGA::MatrixManipulator.

double osgGA::UFOManipulator::getMinDistance ( ) const [inline]

double osgGA::UFOManipulator::getMinHeight ( ) const [inline]

virtual osg::Node* osgGA::UFOManipulator::getNode ( ) [virtual]

Get the root node of the subgraph this manipulator is driving the eye through.

Reimplemented from osgGA::MatrixManipulator.

virtual const osg::Node* osgGA::UFOManipulator::getNode ( ) const [virtual]

Get the root node of the subgraph this manipulator is driving the eye through (const).

Reimplemented from osgGA::MatrixManipulator.

double osgGA::UFOManipulator::getRotationSpeed ( ) const [inline]

double osgGA::UFOManipulator::getSideSpeed ( ) const [inline]

void osgGA::UFOManipulator::getUsage ( osg::ApplicationUsage & usage ) const [virtual]

Reports Usage parameters to the application.

Reimplemented from osgGA::GUIEventHandler.

bool osgGA::UFOManipulator::handle ( const osgGA::GUIEventAdapter & ea,

osgGA::GUIActionAdapter & aa

)

Handles incoming osgGA events.

void osgGA::UFOManipulator::home ( double ) [virtual]

Move the camera to the default position.
This version does not require GUIEventAdapter and GUIActionAdapter so may be called from somewhere other than a handle() method in GUIEventHandler. Application must be aware of implications.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::UFOManipulator::home ( const osgGA::GUIEventAdapter & ,

osgGA::GUIActionAdapter &

) [virtual]

Sets the viewpoint matrix to the home position.

virtual void osgGA::UFOManipulator::init ( const GUIEventAdapter & ,

GUIActionAdapter &

) [virtual]

Start/restart the manipulator.
FIXME: what does this actually mean? Provide examples.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::UFOManipulator::setByInverseMatrix ( const osg::Matrixd & invmat ) [virtual]

Set the current position with the invers matrix.

Parameters:

invmat The inverse of a viewpoint matrix

Implements osgGA::MatrixManipulator.

virtual void osgGA::UFOManipulator::setByMatrix ( const osg::Matrixd & matrix ) [virtual]

Set the current position with a matrix.

Parameters:

matrix A viewpoint matrix.

Implements osgGA::MatrixManipulator.

void osgGA::UFOManipulator::setForwardSpeed ( double in_fs ) [inline]

void osgGA::UFOManipulator::setMinDistance ( double in_min_dist ) [inline]

void osgGA::UFOManipulator::setMinHeight ( double in_min_height ) [inline]

virtual void osgGA::UFOManipulator::setNode ( osg::Node * node ) [virtual]

Set the subgraph this manipulator is driving the eye through.

Parameters:

node root of subgraph

Reimplemented from osgGA::MatrixManipulator.
