osgSim::MultiSwitch Class Reference

MultiSwitch is a Group node which allows switching between sets of selected children. More...

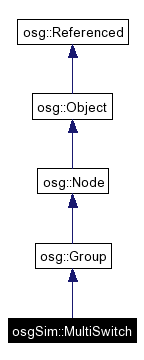

Inheritance diagram for osgSim::MultiSwitch:

[legend]List of all members.

Public Types
typedef std::vector< bool >	ValueList
typedef std::vector< ValueList >	SwitchSetList
Public Member Functions
	MultiSwitch ()
	MultiSwitch (const MultiSwitch &, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osgSim, MultiSwitch)
virtual void	traverse (osg::NodeVisitor &nv)
	Traverse downwards : calls children's accept method with NodeVisitor.
void	setNewChildDefaultValue (bool value)
bool	getNewChildDefaultValue () const
virtual bool	addChild (osg::Node *child)
	Add Node to Group.
virtual bool	insertChild (unsigned int index, osg::Node *child)
	Insert Node to Group at specific location.
virtual bool	removeChild (osg::Node *child)
	Remove Node from Group.
void	setValue (unsigned int switchSet, unsigned int pos, bool value)
bool	getValue (unsigned int switchSet, unsigned int pos) const
void	setChildValue (const osg::Node *child, unsigned int switchSet, bool value)
bool	getChildValue (const osg::Node *child, unsigned int switchSet) const
bool	setAllChildrenOff (unsigned int switchSet)
	Set all the children off (false), and set the new default child value to off (false).
bool	setAllChildrenOn (unsigned int switchSet)
	Set all the children on (true), and set the new default child value to on (true).
bool	setSingleChildOn (unsigned int switchSet, unsigned int pos)
	Set a single child to be on, MultiSwitch off all other children.
void	setActiveSwitchSet (unsigned int switchSet)
	Set which of the available switch set lists to use.
unsigned int	getActiveSwitchSet () const
	Get which of the available switch set lists to use.
void	setSwitchSetList (const SwitchSetList &switchSetList)
	Set the compile set of different values.
const SwitchSetList &	getSwitchSetList () const
	Get the compile set of different values.
void	setValueList (unsigned int switchSet, const ValueList &values)
	Set the a single set of different values for a particular switch set.
const ValueList &	getValueList (unsigned int switchSet) const
	Get the a single set of different values for a particular switch set.
Protected Member Functions
virtual	~MultiSwitch ()
void	expandToEncompassSwitchSet (unsigned int switchSet)
Protected Attributes
bool	_newChildDefaultValue
unsigned int	_activeSwitchSet
SwitchSetList	_values

---

Detailed Description

MultiSwitch is a Group node which allows switching between sets of selected children.

MultiSwtich is based on the OpenFlight switch behaviour.

---

Member Typedef Documentation

typedef std::vector<ValueList> osgSim::MultiSwitch::SwitchSetList

typedef std::vector<bool> osgSim::MultiSwitch::ValueList

---

Constructor & Destructor Documentation

osgSim::MultiSwitch::MultiSwitch (   )

osgSim::MultiSwitch::MultiSwitch (  const MultiSwitch &  , const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY )

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osgSim::MultiSwitch::~MultiSwitch (   )  [inline, protected, virtual]

---

Member Function Documentation

virtual bool osgSim::MultiSwitch::addChild (  osg::Node *  child  )  [virtual]

Add Node to Group. If node is not NULL and is not contained in Group then increment its reference count, add it to the child list and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. Otherwise return false. Scene nodes can't be added as child nodes. Reimplemented from osg::Group.

void osgSim::MultiSwitch::expandToEncompassSwitchSet (  unsigned int  switchSet  )  [protected]

unsigned int osgSim::MultiSwitch::getActiveSwitchSet (   )  const [inline]

Get which of the available switch set lists to use.

bool osgSim::MultiSwitch::getChildValue (  const osg::Node *  child, unsigned int  switchSet )  const

bool osgSim::MultiSwitch::getNewChildDefaultValue (   )  const [inline]

const SwitchSetList& osgSim::MultiSwitch::getSwitchSetList (   )  const [inline]

Get the compile set of different values.

bool osgSim::MultiSwitch::getValue (  unsigned int  switchSet, unsigned int  pos )  const

const ValueList& osgSim::MultiSwitch::getValueList (  unsigned int  switchSet  )  const [inline]

Get the a single set of different values for a particular switch set.

virtual bool osgSim::MultiSwitch::insertChild (  unsigned int  index, osg::Node *  child )  [virtual]

Insert Node to Group at specific location. The new child node is inserted into the child list before the node at the specified index. No nodes are removed from the group with this operation. Reimplemented from osg::Group.

osgSim::MultiSwitch::META_Node (  osgSim  , MultiSwitch  )

virtual bool osgSim::MultiSwitch::removeChild (  osg::Node *  child  )  [virtual]

Remove Node from Group. If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node. Reimplemented from osg::Group.

void osgSim::MultiSwitch::setActiveSwitchSet (  unsigned int  switchSet  )  [inline]

Set which of the available switch set lists to use.

bool osgSim::MultiSwitch::setAllChildrenOff (  unsigned int  switchSet  )

Set all the children off (false), and set the new default child value to off (false).

bool osgSim::MultiSwitch::setAllChildrenOn (  unsigned int  switchSet  )

Set all the children on (true), and set the new default child value to on (true).

void osgSim::MultiSwitch::setChildValue (  const osg::Node *  child, unsigned int  switchSet, bool  value )

void osgSim::MultiSwitch::setNewChildDefaultValue (  bool  value  )  [inline]

bool osgSim::MultiSwitch::setSingleChildOn (  unsigned int  switchSet, unsigned int  pos )

Set a single child to be on, MultiSwitch off all other children.

void osgSim::MultiSwitch::setSwitchSetList (  const SwitchSetList &  switchSetList  )

Set the compile set of different values.

void osgSim::MultiSwitch::setValue (  unsigned int  switchSet, unsigned int  pos, bool  value )

void osgSim::MultiSwitch::setValueList (  unsigned int  switchSet, const ValueList &  values )

Set the a single set of different values for a particular switch set.

virtual void osgSim::MultiSwitch::traverse (  osg::NodeVisitor &  nv  )  [virtual]

Traverse downwards : calls children's accept method with NodeVisitor. Reimplemented from osg::Group.

---

Member Data Documentation

unsigned int osgSim::MultiSwitch::_activeSwitchSet [protected]

bool osgSim::MultiSwitch::_newChildDefaultValue [protected]

SwitchSetList osgSim::MultiSwitch::_values [protected]

---

The documentation for this class was generated from the following file:

• MultiSwitch

---
