osgSim::ScalarBar Class Reference

A ScalarBar is an osg::Geode to render a colored bar representing a range of scalars. More...

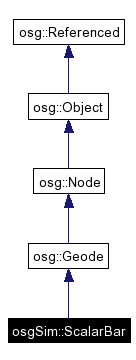

Inheritance diagram for osgSim::ScalarBar:

[legend]List of all members.

Public Types
enum	Orientation { HORIZONTAL, VERTICAL }
	ScalarBar orientation specification. More...
Public Member Functions
	ScalarBar ()
	Default constructor.
	ScalarBar (int numColors, int numLabels, ScalarsToColors *stc, const std::string &title, Orientation orientation=HORIZONTAL, float aspectRatio=0.25, ScalarPrinter *sp=new ScalarPrinter)
	Construct a ScalarBar with the supplied parameters.
	ScalarBar (const ScalarBar &rhs, const osg::CopyOp &co)
	Copy constructor.
	META_Node (osgSim, ScalarBar)
void	setNumColors (int numColors)
	Set the number of distinct colours on the ScalarBar.
int	getNumColors () const
	Get the number of distinct colours on the ScalarBar.
void	setNumLabels (int numLabels)
	Set the number of labels to display along the ScalarBar.
int	getNumLabels () const
	Get the number of labels displayed along the ScalarBar.
void	setScalarsToColors (ScalarsToColors *stc)
	Set the ScalarsToColors mapping object for the ScalarBar.
const ScalarsToColors *	getScalarsToColors () const
	Get the ScalarsToColors mapping object from the ScalarBar.
void	setTitle (const std::string &title)
	Set the title for the ScalarBar, set "" for no title.
std::string	getTitle () const
	Get the title for the ScalarBar.
void	setPosition (const osg::Vec3 &pos)
	Set the position of scalar bar's lower left corner.
const osg::Vec3 &	getPosition () const
	Get the position of scalar bar.
void	setWidth (float width)
	Set the width of the scalar bar.
float	getWidth ()
	Get the width of the scalar bar.
void	setAspectRatio (float aspectRatio)
	Set the aspect ration (y/x) for the displayed bar.
float	getAspectRatio () const
	Get the aspect ration (y/x) for the displayed bar.
void	setOrientation (ScalarBar::Orientation orientation)
	Set the orientation of the ScalarBar.
ScalarBar::Orientation	getOrientation () const
	Get the orientation of the ScalarBar.
void	setScalarPrinter (ScalarPrinter *sp)
	Set a ScalarPrinter object for the ScalarBar.
const ScalarPrinter *	getScalarPrinter () const
	Get the ScalarPrinter object.
void	setTextProperties (const TextProperties &tp)
	Set the TextProperties for the labels & title.
const TextProperties &	getTextProperties () const
	Get the TextProperties for the labels & title.
void	update ()
	force update the drawables used to render the scalar bar.
Protected Member Functions
virtual	~ScalarBar ()
void	createDrawables ()
Protected Attributes
int	_numColors
int	_numLabels
osg::ref_ptr< ScalarsToColors >	_stc
std::string	_title
osg::Vec3	_position
float	_width
float	_aspectRatio
Orientation	_orientation
osg::ref_ptr< ScalarPrinter >	_sp
TextProperties	_textProperties

---

Detailed Description

A ScalarBar is an osg::Geode to render a colored bar representing a range of scalars.

The scalar/color ranges are specified by an instance of ScalarsToColors. There are a number of configurable properties on the ScalarBar, such as the orientation, the number of labels to be displayed across the range, the number of distinct colors to use when rendering the bar, text details etc.

In summary, the main configurables on the ScalarBar are:

1. The range of scalars represented by the bar, and the colors corresponding to this range - these are specified by the ScalarsToColors object.
2. The number of colors used when rendering the bar geometry - this may be thought of as the bar 'density'.
3. The number of text labels to be used when displaying the bar.

The other configurables should be self-explanatory.

---

Member Enumeration Documentation

enum osgSim::ScalarBar::Orientation

ScalarBar orientation specification. Enumeration values: HORIZONTAL  a horizontally ascending scalar bar (x-axis) VERTICAL  a vertically ascending scalar bar (y-axis)

---

Constructor & Destructor Documentation

osgSim::ScalarBar::ScalarBar (   )  [inline]

Default constructor.

osgSim::ScalarBar::ScalarBar (  int  numColors, int  numLabels, ScalarsToColors *  stc, const std::string &  title, Orientation  orientation = HORIZONTAL, float  aspectRatio = 0.25, ScalarPrinter *  sp = new ScalarPrinter )  [inline]

Construct a ScalarBar with the supplied parameters. Parameters: numColors  Specify the number of colors in the scalar bar. Color interpolation occurs where necessary. numLabels  Specify the number of labels in the scalar bar. stc  The ScalarsToColors defining the range of scalars and the colors they map to. title  The title to be used when displaying the ScalarBar. Specify "" for no title. orientation  The orientation of the ScalarBar. See also: Orientation. Parameters: aspectRatio  The aspect ration (y/x) for the displayed bar. Bear in mind you may want to change this if you change the orientation. sp  A ScalarPrinter object for the ScalarBar. For every displayed ScalarBar label, the scalar value will be passed to the ScalarPrinter object to turn it into a string. Users may override the default ScalarPrinter object to map scalars to whatever strings they wish. See also: ScalarPrinter

osgSim::ScalarBar::ScalarBar (  const ScalarBar &  rhs, const osg::CopyOp &  co )  [inline]

Copy constructor.

virtual osgSim::ScalarBar::~ScalarBar (   )  [protected, virtual]

---

Member Function Documentation

void osgSim::ScalarBar::createDrawables (   )  [protected]

float osgSim::ScalarBar::getAspectRatio (   )  const

Get the aspect ration (y/x) for the displayed bar.

int osgSim::ScalarBar::getNumColors (   )  const

Get the number of distinct colours on the ScalarBar.

int osgSim::ScalarBar::getNumLabels (   )  const

Get the number of labels displayed along the ScalarBar.

ScalarBar::Orientation osgSim::ScalarBar::getOrientation (   )  const

Get the orientation of the ScalarBar. See also: Orientation

const osg::Vec3& osgSim::ScalarBar::getPosition (   )  const [inline]

Get the position of scalar bar.

const ScalarPrinter* osgSim::ScalarBar::getScalarPrinter (   )  const

Get the ScalarPrinter object.

const ScalarsToColors* osgSim::ScalarBar::getScalarsToColors (   )  const

Get the ScalarsToColors mapping object from the ScalarBar.

const TextProperties& osgSim::ScalarBar::getTextProperties (   )  const

Get the TextProperties for the labels & title. See also: TextProperties

std::string osgSim::ScalarBar::getTitle (   )  const

Get the title for the ScalarBar.

float osgSim::ScalarBar::getWidth (   )  [inline]

Get the width of the scalar bar.

osgSim::ScalarBar::META_Node (  osgSim  , ScalarBar  )

void osgSim::ScalarBar::setAspectRatio (  float  aspectRatio  )

Set the aspect ration (y/x) for the displayed bar. Bear in mind you may want to change this if you change the orientation.

void osgSim::ScalarBar::setNumColors (  int  numColors  )

Set the number of distinct colours on the ScalarBar.

void osgSim::ScalarBar::setNumLabels (  int  numLabels  )

Set the number of labels to display along the ScalarBar. There will be one label at each end point, and evenly distributed labels in between.

void osgSim::ScalarBar::setOrientation (  ScalarBar::Orientation  orientation  )

Set the orientation of the ScalarBar. See also: Orientation

void osgSim::ScalarBar::setPosition (  const osg::Vec3 &  pos  )

Set the position of scalar bar's lower left corner.

void osgSim::ScalarBar::setScalarPrinter (  ScalarPrinter *  sp  )

Set a ScalarPrinter object for the ScalarBar. For every displayed ScalarBar label, the scalar value will be passed to the ScalarPrinter object to turn it into a string. Users may override the default ScalarPrinter object to map scalars to whatever strings they wish. See also: ScalarPrinter

void osgSim::ScalarBar::setScalarsToColors (  ScalarsToColors *  stc  )

Set the ScalarsToColors mapping object for the ScalarBar.

void osgSim::ScalarBar::setTextProperties (  const TextProperties &  tp  )

Set the TextProperties for the labels & title. See also: TextProperties

void osgSim::ScalarBar::setTitle (  const std::string &  title  )

Set the title for the ScalarBar, set "" for no title.

void osgSim::ScalarBar::setWidth (  float  width  )

Set the width of the scalar bar.

void osgSim::ScalarBar::update (   )  [inline]

force update the drawables used to render the scalar bar.

---

Member Data Documentation

float osgSim::ScalarBar::_aspectRatio [protected]

int osgSim::ScalarBar::_numColors [protected]

int osgSim::ScalarBar::_numLabels [protected]

Orientation osgSim::ScalarBar::_orientation [protected]

osg::Vec3 osgSim::ScalarBar::_position [protected]

osg::ref_ptr<ScalarPrinter> osgSim::ScalarBar::_sp [protected]

osg::ref_ptr<ScalarsToColors> osgSim::ScalarBar::_stc [protected]

TextProperties osgSim::ScalarBar::_textProperties [protected]

std::string osgSim::ScalarBar::_title [protected]

float osgSim::ScalarBar::_width [protected]

---

The documentation for this class was generated from the following file:

• ScalarBar

---
