osg::ClipNode Class Reference

Node for defining the position of ClipPlanes in the scene. More...

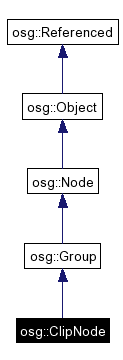

Inheritance diagram for osg::ClipNode:

[legend]List of all members.

Public Types
typedef std::vector< ref_ptr< ClipPlane > >	ClipPlaneList
Public Member Functions
	ClipNode ()
	ClipNode (const ClipNode &es, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Node (osg, ClipNode)
void	createClipBox (const BoundingBox &bb, unsigned int clipPlaneNumberBase=0)
	Creates six clip planes corresponding to the given BoundingBox.
bool	addClipPlane (ClipPlane *clipplane)
	Adds the clipplane.
bool	removeClipPlane (ClipPlane *clipplane)
	Removes the clipplane.
bool	removeClipPlane (unsigned int pos)
	Remove the ClipPlane with the given index.
unsigned int	getNumClipPlanes () const
	Returns the number of ClipPlanes.
ClipPlane *	getClipPlane (unsigned int pos)
	Get ClipPlane at the given index position.
const ClipPlane *	getClipPlane (unsigned int pos) const
	Get const ClipPlane at the given index position.
void	getClipPlaneList (const ClipPlaneList &cpl)
	Set the ClipPlaneList.
ClipPlaneList &	getClipPlaneList ()
	Get the ClipPlaneList.
const ClipPlaneList &	getClipPlaneList () const
	Get the const ClipPlaneList.
void	setStateSetModes (StateSet &, StateAttribute::GLModeValue) const
	Set the GLModes for all ClipPlanes, on the StateSet.
void	setLocalStateSetModes (StateAttribute::GLModeValue=StateAttribute::ON)
	Set up the local StateSet.
virtual BoundingSphere	computeBound () const
	Compute the bounding sphere around Node's geometry or children.
Protected Member Functions
virtual	~ClipNode ()
Protected Attributes
StateAttribute::GLModeValue	_value
ClipPlaneList	_planes

---

Detailed Description

Node for defining the position of ClipPlanes in the scene.

---

Member Typedef Documentation

typedef std::vector<ref_ptr<ClipPlane> > osg::ClipNode::ClipPlaneList

---

Constructor & Destructor Documentation

osg::ClipNode::ClipNode (   )

osg::ClipNode::ClipNode (  const ClipNode &  es, const CopyOp &  copyop = CopyOp::SHALLOW_COPY )

virtual osg::ClipNode::~ClipNode (   )  [protected, virtual]

---

Member Function Documentation

bool osg::ClipNode::addClipPlane (  ClipPlane *  clipplane  )

Adds the clipplane. Returns true on success, and false if the plane has already been added, or if clipplane is NULL.

virtual BoundingSphere osg::ClipNode::computeBound (   )  const [virtual]

Compute the bounding sphere around Node's geometry or children. This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound(). Reimplemented from osg::Group.

void osg::ClipNode::createClipBox (  const BoundingBox &  bb, unsigned int  clipPlaneNumberBase = 0 )

Creates six clip planes corresponding to the given BoundingBox.

const ClipPlane* osg::ClipNode::getClipPlane (  unsigned int  pos  )  const [inline]

Get const ClipPlane at the given index position.

ClipPlane* osg::ClipNode::getClipPlane (  unsigned int  pos  )  [inline]

Get ClipPlane at the given index position.

const ClipPlaneList& osg::ClipNode::getClipPlaneList (   )  const [inline]

Get the const ClipPlaneList.

ClipPlaneList& osg::ClipNode::getClipPlaneList (   )  [inline]

Get the ClipPlaneList.

void osg::ClipNode::getClipPlaneList (  const ClipPlaneList &  cpl  )  [inline]

Set the ClipPlaneList.

unsigned int osg::ClipNode::getNumClipPlanes (   )  const [inline]

Returns the number of ClipPlanes.

osg::ClipNode::META_Node (  osg  , ClipNode  )

bool osg::ClipNode::removeClipPlane (  unsigned int  pos  )

Remove the ClipPlane with the given index. Returns true on success, false if pos is not a valid plane index.

bool osg::ClipNode::removeClipPlane (  ClipPlane *  clipplane  )

Removes the clipplane. Returns true on success, false if clipplane isn't in this ClipNode.

void osg::ClipNode::setLocalStateSetModes (  StateAttribute::GLModeValue  = StateAttribute::ON  )

Set up the local StateSet.

void osg::ClipNode::setStateSetModes (  StateSet &  , StateAttribute::GLModeValue  )  const

Set the GLModes for all ClipPlanes, on the StateSet.

---

Member Data Documentation

ClipPlaneList osg::ClipNode::_planes [protected]

StateAttribute::GLModeValue osg::ClipNode::_value [protected]

---

The documentation for this class was generated from the following file:

• ClipNode

---
