osg::CoordinateSystemNode Class Reference

CoordinateSystem encapsulate the coordinate system that is associated with objects in a scene. More...

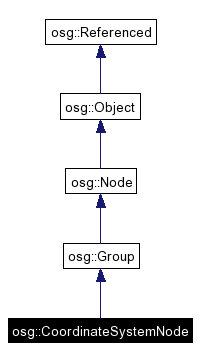

Inheritance diagram for osg::CoordinateSystemNode:

[legend]List of all members.

Public Member Functions
	CoordinateSystemNode ()
	CoordinateSystemNode (const std::string &format, const std::string &cs)
	CoordinateSystemNode (const CoordinateSystemNode &, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osg, CoordinateSystemNode)
void	set (const CoordinateSystemNode &csn)
	Set the coordinate system node up by copy the format, coordinate system string, and ellipsoid model of another coordinate system node.
void	setFormat (const std::string &format)
	Set the coordinate system format string.
const std::string &	getFormat () const
	Get the coordinate system format string.
void	setCoordinateSystem (const std::string &cs)
	Set the CoordinateSystem reference string, should be stored in a form consistent with the Format.
const std::string &	getCoordinateSystem () const
	Get the CoordinateSystem reference string.
void	setEllipsoidModel (EllipsoidModel *ellipsode)
	Set EllipsoidModel to describe the model used to map lat, long and height into geocentric XYZ and back.
EllipsoidModel *	getEllipsoidModel ()
	Get the EllipsoidModel.
const EllipsoidModel *	getEllipsoidModel () const
	Get the const EllipsoidModel.
CoordinateFrame	computeLocalCoordinateFrame (const Vec3d &position) const
	Compute the local coordinate frame for specified point.
osg::Vec3d	computeLocalUpVector (const Vec3d &position) const
	Compute the local coordinate frame for specified point.
Protected Member Functions
virtual	~CoordinateSystemNode ()
Protected Attributes
std::string	_format
std::string	_cs
ref_ptr< EllipsoidModel >	_ellipsoidModel

---

Detailed Description

CoordinateSystem encapsulate the coordinate system that is associated with objects in a scene.

For an overview of common earth bases coordinate systems see http://www.colorado.edu/geography/gcraft/notes/coordsys/coordsys_f.html

---

Constructor & Destructor Documentation

osg::CoordinateSystemNode::CoordinateSystemNode (   )

osg::CoordinateSystemNode::CoordinateSystemNode (  const std::string &  format, const std::string &  cs )

osg::CoordinateSystemNode::CoordinateSystemNode (  const CoordinateSystemNode &  , const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY )

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::CoordinateSystemNode::~CoordinateSystemNode (   )  [inline, protected, virtual]

---

Member Function Documentation

CoordinateFrame osg::CoordinateSystemNode::computeLocalCoordinateFrame (  const Vec3d &  position  )  const

Compute the local coordinate frame for specified point.

osg::Vec3d osg::CoordinateSystemNode::computeLocalUpVector (  const Vec3d &  position  )  const

Compute the local coordinate frame for specified point.

const std::string& osg::CoordinateSystemNode::getCoordinateSystem (   )  const [inline]

Get the CoordinateSystem reference string.

const EllipsoidModel* osg::CoordinateSystemNode::getEllipsoidModel (   )  const [inline]

Get the const EllipsoidModel.

EllipsoidModel* osg::CoordinateSystemNode::getEllipsoidModel (   )  [inline]

Get the EllipsoidModel.

const std::string& osg::CoordinateSystemNode::getFormat (   )  const [inline]

Get the coordinate system format string.

osg::CoordinateSystemNode::META_Node (  osg  , CoordinateSystemNode  )

void osg::CoordinateSystemNode::set (  const CoordinateSystemNode &  csn  )

Set the coordinate system node up by copy the format, coordinate system string, and ellipsoid model of another coordinate system node.

void osg::CoordinateSystemNode::setCoordinateSystem (  const std::string &  cs  )  [inline]

Set the CoordinateSystem reference string, should be stored in a form consistent with the Format.

void osg::CoordinateSystemNode::setEllipsoidModel (  EllipsoidModel *  ellipsode  )  [inline]

Set EllipsoidModel to describe the model used to map lat, long and height into geocentric XYZ and back.

void osg::CoordinateSystemNode::setFormat (  const std::string &  format  )  [inline]

Set the coordinate system format string. Typical values would be WKT, PROJ4, USGS etc.

---

Member Data Documentation

std::string osg::CoordinateSystemNode::_cs [protected]

ref_ptr<EllipsoidModel> osg::CoordinateSystemNode::_ellipsoidModel [protected]

std::string osg::CoordinateSystemNode::_format [protected]

---

The documentation for this class was generated from the following file:

• CoordinateSystemNode

---
