osgSim::SphereSegment Class Reference

A SphereSegment is a Geode to represent an portion of a sphere (potentially the whole sphere). More...

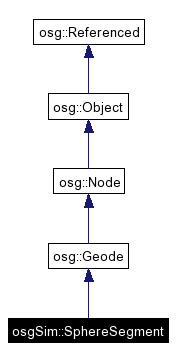

Inheritance diagram for osgSim::SphereSegment:

[legend]List of all members.

Public Types
typedef std::vector< osg::ref_ptr< osg::Vec3Array > >	LineList
	A list of vertex arrays representing a list of lines.
enum	DrawMask {   SURFACE = 0x00000001, SPOKES = 0x00000002, EDGELINE = 0x00000008, SIDES = 0x00000010,   ALL = 0xffffffff }
	DrawMask represents a bit field, the values of which may be OR'ed together to specify which parts of the sphere segment should be drawn. More...
Public Member Functions
	SphereSegment ()
	Default constructor.
	SphereSegment (const osg::Vec3 &centre, float radius, float azMin, float azMax, float elevMin, float elevMax, int density)
	Construct by angle ranges.
	SphereSegment (const osg::Vec3 &centre, float radius, const osg::Vec3 &vec, float azRange, float elevRange, int density)
	Construct by vector.
	SphereSegment (const SphereSegment &rhs, const osg::CopyOp &co)
	Copy constructor.
void	setCentre (const osg::Vec3 &c)
	Set the centre point of the SphereSegment.
const osg::Vec3 &	getCentre () const
	Get the centre point of the SphereSegment.
void	setRadius (float r)
	Set the radius of the SphereSegment.
float	getRadius () const
	Get the radius of the SphereSegment.
void	setArea (const osg::Vec3 &vec, float azRange, float elevRange)
	Set the area of the sphere segment.
void	getArea (osg::Vec3 &vec, float &azRange, float &elevRange) const
	Get the area of the sphere segment.
void	setArea (float azMin, float azMax, float elevMin, float elevMax)
	Set the area of the sphere segment.
void	getArea (float &azMin, float &azMax, float &elevMin, float &elevMax) const
	Get the area of the sphere segment.
void	setDensity (int d)
	Set the density of the sphere segment.
int	getDensity () const
	Get the density of the sphere segment.
void	setDrawMask (DrawMask dm)
	Specify the DrawMask.
DrawMask	getDrawMask () const
	Get the DrawMask.
void	setSurfaceColor (const osg::Vec4 &c)
	Set the color of the surface.
osg::Vec4	getSurfaceColor () const
	Get the color of the surface.
void	setSpokeColor (const osg::Vec4 &c)
	Set the color of the spokes.
osg::Vec4	getSpokeColor () const
	Get the color of the spokes.
void	setEdgeLineColor (const osg::Vec4 &c)
	Set the color of the edge line.
osg::Vec4	getEdgeLineColor () const
	Get the color of the edge line.
void	setSideColor (const osg::Vec4 &c)
	Set the color of the planes.
osg::Vec4	getSideColor () const
	Get the color of the planes.
void	setAllColors (const osg::Vec4 &c)
	Set color of all components.
	META_Node (osgSim, SphereSegment)
LineList	computeIntersection (const osg::Matrixd &matrix, osg::Node *subgraph)
	Compute the interesection lines between subgraph and this sphere segment.
LineList	computeIntersection (const osg::Matrixd &matrix, osg::Drawable *drawable)
	Compute the interesection lines between specified drawable and this sphere segment.
osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Node *subgraph)
	Compute the interesection lines between subgraph and this sphere segment.
osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Drawable *drawable)
	Compute the interesection lines between specified drawable and this sphere segment.

---

Detailed Description

A SphereSegment is a Geode to represent an portion of a sphere (potentially the whole sphere).

The sphere is aligned such that the line through the sphere's poles is parallel to the z axis. The sphere segment may be rendered various components switched on or off:

• The specified area of the sphere surface.

• An edge line around the boundary of the specified area of the sphere surface.

• Four spokes, where a spoke is the line from the sphere's centre to a corner of the rendered area.

• Four planar areas, where the planar areas are formed between the spokes.

Caveats:

• It's worth noting that the line through the sphere's poles is parallel to the z axis. This has implications when specifying the area to be rendered, and specifying areas where the centre of the rendered area is the Z axis may lead to unexpected geometry.

• It's possible to render the whole sphere by specifying elevation and azimuth ranges round the full 360 degrees. When doing so you may consider switching the planes, spokes, and edge lines off, to avoid rendering artefacts, e.g. the upper and lower planes will be coincident.

---

Member Typedef Documentation

typedef std::vector< osg::ref_ptr<osg::Vec3Array> > osgSim::SphereSegment::LineList

A list of vertex arrays representing a list of lines.

---

Member Enumeration Documentation

enum osgSim::SphereSegment::DrawMask

DrawMask represents a bit field, the values of which may be OR'ed together to specify which parts of the sphere segment should be drawn. E.g. sphereSegment->setDrawMask(SphereSegment::DrawMask(SphereSegment::SURFACE|SphereSegment::SPOKES)); Enumeration values: SURFACE  Draw the specified area on the sphere's surface. SPOKES  Draw the spokes from the sphere's centre to the surface's corners. EDGELINE  Draw the line round the edge of the area on the sphere's surface. SIDES  Draw the planes from the sphere's centre to the edge of the sphere's surface. ALL  Draw every part of the sphere segment.

---

Constructor & Destructor Documentation

osgSim::SphereSegment::SphereSegment (   )  [inline]

Default constructor.

osgSim::SphereSegment::SphereSegment (  const osg::Vec3 &  centre, float  radius, float  azMin, float  azMax, float  elevMin, float  elevMax, int  density )  [inline]

Construct by angle ranges. Note that the azimuth 'zero' is the Y axis; specifying an azimuth range from azMin -osg::PI/2.0f to azMax osg::PI/2.0f will cover the 'top half' of the circle in the XY plane. The elev angles are 'out' of the 'zero' XY plane with +ve angles above the plane, and -ve angles below. Parameters: centre  sphere centre radius  radius of sphere azMin  azimuth minimum azMax  azimuth maximum elevMin  elevation minimum elevMax  elevation maximum density  number of units to divide the azimuth and elevation ranges into

osgSim::SphereSegment::SphereSegment (  const osg::Vec3 &  centre, float  radius, const osg::Vec3 &  vec, float  azRange, float  elevRange, int  density )

Construct by vector. Parameters: centre  sphere centre radius  radius of sphere vec  vector pointing from sphere centre to centre point of rendered area on sphere surface azRange  azimuth range in radians (with centre along vec) elevRange  elevation range in radians (with centre along vec) density  number of units to divide the azimuth and elevation ranges into

osgSim::SphereSegment::SphereSegment (  const SphereSegment &  rhs, const osg::CopyOp &  co )  [inline]

Copy constructor.

---

Member Function Documentation

LineList osgSim::SphereSegment::computeIntersection (  const osg::Matrixd &  matrix, osg::Drawable *  drawable )

Compute the interesection lines between specified drawable and this sphere segment.

LineList osgSim::SphereSegment::computeIntersection (  const osg::Matrixd &  matrix, osg::Node *  subgraph )

Compute the interesection lines between subgraph and this sphere segment.

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph (  const osg::Matrixd &  matrix, osg::Drawable *  drawable )

Compute the interesection lines between specified drawable and this sphere segment.

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph (  const osg::Matrixd &  matrix, osg::Node *  subgraph )

Compute the interesection lines between subgraph and this sphere segment.

void osgSim::SphereSegment::getArea (  float &  azMin, float &  azMax, float &  elevMin, float &  elevMax )  const

Get the area of the sphere segment. Parameters: azMin  azimuth minimum azMax  azimuth maximum elevMin  elevation minimum elevMax  elevation maximum

void osgSim::SphereSegment::getArea (  osg::Vec3 &  vec, float &  azRange, float &  elevRange )  const

Get the area of the sphere segment. Parameters: vec  vector pointing from sphere centre to centre point of rendered area on sphere surface (normalized) azRange  azimuth range in radians (with centre along vec) elevRange  elevation range in radians (with centre along vec)

const osg::Vec3& osgSim::SphereSegment::getCentre (   )  const

Get the centre point of the SphereSegment.

int osgSim::SphereSegment::getDensity (   )  const

Get the density of the sphere segment.

DrawMask osgSim::SphereSegment::getDrawMask (   )  const [inline]

Get the DrawMask.

osg::Vec4 osgSim::SphereSegment::getEdgeLineColor (   )  const [inline]

Get the color of the edge line.

float osgSim::SphereSegment::getRadius (   )  const

Get the radius of the SphereSegment.

osg::Vec4 osgSim::SphereSegment::getSideColor (   )  const [inline]

Get the color of the planes.

osg::Vec4 osgSim::SphereSegment::getSpokeColor (   )  const [inline]

Get the color of the spokes.

osg::Vec4 osgSim::SphereSegment::getSurfaceColor (   )  const [inline]

Get the color of the surface.

osgSim::SphereSegment::META_Node (  osgSim  , SphereSegment  )

void osgSim::SphereSegment::setAllColors (  const osg::Vec4 &  c  )

Set color of all components.

void osgSim::SphereSegment::setArea (  float  azMin, float  azMax, float  elevMin, float  elevMax )

Set the area of the sphere segment. Parameters: azMin  azimuth minimum azMax  azimuth maximum elevMin  elevation minimum elevMax  elevation maximum

void osgSim::SphereSegment::setArea (  const osg::Vec3 &  vec, float  azRange, float  elevRange )

Set the area of the sphere segment. Parameters: vec  vector pointing from sphere centre to centre point of rendered area on sphere surface azRange  azimuth range in radians (with centre along vec) elevRange  elevation range in radians (with centre along vec)

void osgSim::SphereSegment::setCentre (  const osg::Vec3 &  c  )

Set the centre point of the SphereSegment.

void osgSim::SphereSegment::setDensity (  int  d  )

Set the density of the sphere segment.

void osgSim::SphereSegment::setDrawMask (  DrawMask  dm  )

Specify the DrawMask. Parameters: dm  Bitmask specifying which parts of the sphere segment should be drawn. See also: DrawMask

void osgSim::SphereSegment::setEdgeLineColor (  const osg::Vec4 &  c  )

Set the color of the edge line.

void osgSim::SphereSegment::setRadius (  float  r  )

Set the radius of the SphereSegment.

void osgSim::SphereSegment::setSideColor (  const osg::Vec4 &  c  )

Set the color of the planes.

void osgSim::SphereSegment::setSpokeColor (  const osg::Vec4 &  c  )

Set the color of the spokes.

void osgSim::SphereSegment::setSurfaceColor (  const osg::Vec4 &  c  )

Set the color of the surface.

---

The documentation for this class was generated from the following file:

• SphereSegment

---
