osgUtil::CubeMapGenerator Class Reference

This is the base class for cube map generators. More...

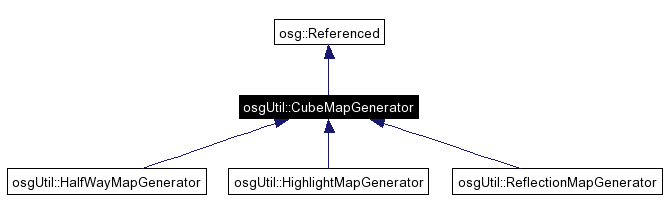

Inheritance diagram for osgUtil::CubeMapGenerator:

[legend]List of all members.

Public Member Functions
	CubeMapGenerator (int texture_size=64)
	CubeMapGenerator (const CubeMapGenerator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
osg::Image *	getImage (osg::TextureCubeMap::Face face)
const osg::Image *	getImage (osg::TextureCubeMap::Face face) const
void	generateMap (bool use_osg_system=true)
	Generate the six cube images.
Protected Member Functions
virtual	~CubeMapGenerator ()
CubeMapGenerator &	operator= (const CubeMapGenerator &)
void	set_pixel (int index, int c, int r, const osg::Vec4 &color)
virtual osg::Vec4	compute_color (const osg::Vec3 &R) const=0
	Override this method to define how colors are computed.
Static Protected Member Functions
osg::Vec4	vector_to_color (const osg::Vec3 &vec)

---

Detailed Description

This is the base class for cube map generators.

It exposes the necessary interface to access the six generated images; descendants should only override the compute_color() method.

---

Constructor & Destructor Documentation

osgUtil::CubeMapGenerator::CubeMapGenerator (  int  texture_size = 64  )  [explicit]

osgUtil::CubeMapGenerator::CubeMapGenerator (  const CubeMapGenerator &  copy, const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY )

virtual osgUtil::CubeMapGenerator::~CubeMapGenerator (   )  [inline, protected, virtual]

---

Member Function Documentation

virtual osg::Vec4 osgUtil::CubeMapGenerator::compute_color (  const osg::Vec3 &  R  )  const [protected, pure virtual]

Override this method to define how colors are computed. The parameter R is the reflection vector, pointing from the center of the cube. The return value should be the RGBA color associated with that reflection ray. Implemented in osgUtil::HalfWayMapGenerator, osgUtil::HighlightMapGenerator, and osgUtil::ReflectionMapGenerator.

void osgUtil::CubeMapGenerator::generateMap (  bool  use_osg_system = true  )

Generate the six cube images. If use_osg_system is true, then the OSG's coordinate system is used instead of the default OpenGL one.

const osg::Image * osgUtil::CubeMapGenerator::getImage (  osg::TextureCubeMap::Face  face  )  const [inline]

osg::Image * osgUtil::CubeMapGenerator::getImage (  osg::TextureCubeMap::Face  face  )  [inline]

CubeMapGenerator& osgUtil::CubeMapGenerator::operator= (  const CubeMapGenerator &   )  [inline, protected]

void osgUtil::CubeMapGenerator::set_pixel (  int  index, int  c, int  r, const osg::Vec4 &  color )  [inline, protected]

osg::Vec4 osgUtil::CubeMapGenerator::vector_to_color (  const osg::Vec3 &  vec  )  [inline, static, protected]

---

The documentation for this class was generated from the following file:

• CubeMapGenerator

---
