osg::CameraNode Class Reference

CameraNode - is a subclass of Transform which represents encapsulates the settings of a Camera. More...

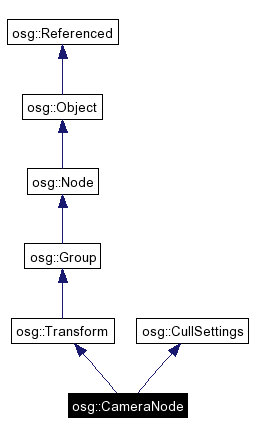

Inheritance diagram for osg::CameraNode:

[legend]List of all members.


Public Types
typedef std::map< BufferComponent, Attachment >	BufferAttachmentMap
enum	TransformOrder { PRE_MULTIPLE, POST_MULTIPLE }
enum	RenderOrder { PRE_RENDER, NESTED_RENDER, POST_RENDER }
enum	RenderTargetImplementation { FRAME_BUFFER_OBJECT, PIXEL_BUFFER_RTT, PIXEL_BUFFER, FRAME_BUFFER, SEPERATE_WINDOW }
enum	BufferComponent { DEPTH_BUFFER, STENCIL_BUFFER, COLOR_BUFFER, COLOR_BUFFER0 = COLOR_BUFFER, COLOR_BUFFER1 = COLOR_BUFFER+1, COLOR_BUFFER2 = COLOR_BUFFER+2, COLOR_BUFFER3 = COLOR_BUFFER+3, COLOR_BUFFER4 = COLOR_BUFFER+4, COLOR_BUFFER5 = COLOR_BUFFER+5, COLOR_BUFFER6 = COLOR_BUFFER+6, COLOR_BUFFER7 = COLOR_BUFFER+7 }
Public Member Functions
	CameraNode ()
	CameraNode (const CameraNode &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osg, CameraNode)
void	setClearColor (const Vec4 &color)
	Sets the clear color.
const Vec4 &	getClearColor () const
	Returns the clear color.
void	setClearMask (GLbitfield mask)
	Set the clear mask used in glClear(..).
GLbitfield	getClearMask () const
	Get the clear mask.
void	setColorMask (osg::ColorMask *colorMask)
	Set the color mask of the camera to use specified osg::ColorMask.
void	setColorMask (bool red, bool green, bool blue, bool alpha)
	Set the color mask of the camera to specified values.
const ColorMask *	getColorMask () const
	Get the const ColorMask.
ColorMask *	getColorMask ()
	Get the ColorMask.
void	setViewport (osg::Viewport *viewport)
	Set the viewport of the camera to use specified osg::Viewport.
void	setViewport (int x, int y, int width, int height)
	Set the viewport of the camera to specified dimensions.
const Viewport *	getViewport () const
	Get the const viewport.
Viewport *	getViewport ()
	Get the viewport.
void	setTransformOrder (TransformOrder order)
TransformOrder	getTransformOrder () const
void	setProjectionMatrix (const osg::Matrixf &matrix)
	Set the projection matrix.
void	setProjectionMatrix (const osg::Matrixd &matrix)
	Set the projection matrix.
void	setProjectionMatrixAsOrtho (double left, double right, double bottom, double top, double zNear, double zFar)
	Set to an orthographic projection.
void	setProjectionMatrixAsOrtho2D (double left, double right, double bottom, double top)
	Set to a 2D orthographic projection.
void	setProjectionMatrixAsFrustum (double left, double right, double bottom, double top, double zNear, double zFar)
	Set to a perspective projection.
void	setProjectionMatrixAsPerspective (double fovy, double aspectRatio, double zNear, double zFar)
	Create a symmetrical perspective projection, See OpenGL gluPerspective documentation for further details.
osg::Matrixd &	getProjectionMatrix ()
	Get the projection matrix.
const osg::Matrixd &	getProjectionMatrix () const
	Get the const projection matrix.
bool	getProjectionMatrixAsOrtho (double &left, double &right, double &bottom, double &top, double &zNear, double &zFar)
	Get the othographic settings of the orthographic projection matrix.
bool	getProjectionMatrixAsFrustum (double &left, double &right, double &bottom, double &top, double &zNear, double &zFar)
	Get the frustum setting of a perspective projection matrix.
bool	getProjectionMatrixAsPerspective (double &fovy, double &aspectRatio, double &zNear, double &zFar)
	Get the frustum setting of a symmetric perspective projection matrix.
void	setViewMatrix (const osg::Matrixf &matrix)
	Set the view matrix.
void	setViewMatrix (const osg::Matrixd &matrix)
	Set the view matrix.
void	setViewMatrixAsLookAt (const osg::Vec3 &eye, const osg::Vec3 &center, const osg::Vec3 &up)
	Set to the position and orientation of view matrix, using the same convention as gluLookAt.
osg::Matrixd &	getViewMatrix ()
	Get the view matrix.
const osg::Matrixd &	getViewMatrix () const
	Get the const view matrix.
void	getViewMatrixAsLookAt (osg::Vec3 &eye, osg::Vec3 &center, osg::Vec3 &up, float lookDistance=1.0f)
	Get to the position and orientation of a modelview matrix, using the same convention as gluLookAt.
Matrixd	getInverseViewMatrix () const
	Get the inverse view matrix.
void	setRenderOrder (RenderOrder order)
	Set the rendering order of this camera's subgraph relative to any camera that this subgraph is nested within.
RenderOrder	getRenderOrder () const
	Get the rendering order of this camera's subgraph relative to any camera that this subgraph is nested within.
void	setRenderTargetImplementation (RenderTargetImplementation impl)
void	setRenderTargetImplementation (RenderTargetImplementation impl, RenderTargetImplementation fallback)
RenderTargetImplementation	getRenderTargetImplementation () const
RenderTargetImplementation	getRenderTargetFallback () const
void	setDrawBuffer (GLenum buffer)
	Set the draw buffer used at the start of each frame draw.
GLenum	getDrawBuffer () const
	Get the draw buffer used at the start of each frame draw.
void	setReadBuffer (GLenum buffer)
	Set the read buffer for any required copy operations to use.
GLenum	getReadBuffer () const
	Get the read buffer for any required copy operations to use.
void	attach (BufferComponent buffer, GLenum internalFormat)
void	attach (BufferComponent buffer, osg::Texture *texture, unsigned int level=0, unsigned int face=0, bool mipMapGeneration=false)
void	attach (BufferComponent buffer, osg::Image *image)
void	detach (BufferComponent buffer)
BufferAttachmentMap &	getBufferAttachmentMap ()
	Get the BufferAttachmentMap, used to configure frame buffer objects, pbuffers and texture reads.
const BufferAttachmentMap &	getBufferAttachmentMap () const
	Get the const BufferAttachmentMap, used to configure frame buffer objects, pbuffers and texture reads.
void	setGraphicsContext (GraphicsContext *context)
	Set the GraphicsContext that provides the mechansim for managing the OpenGL graphics context associated with this camera.
GraphicsContext *	getGraphicsContext ()
	Get the GraphicsContext.
const GraphicsContext *	getGraphicsContext () const
	Get the const GraphicsContext.
void	setRenderingCache (unsigned int contextID, osg::Object *rc)
	Set the Rendering object that is used to implement rendering of the subgraph.
osg::Object *	getRenderingCache (unsigned int contextID)
	Get the Rendering object that is used to implement rendering of the subgraph.
const osg::Object *	getRenderingCache (unsigned int contextID) const
	Get the const Rendering object that is used to implement rendering of the subgraph.
void	setPostDrawCallback (DrawCallback *cb)
	Set the post draw callback for custom operations to do done after the drawing of the camera's subgraph has been completed.
DrawCallback *	getPostDrawCallback ()
	Get the post draw callback.
const DrawCallback *	getPostDrawCallback () const
	Get the const post draw callback.
OpenThreads::Mutex *	getDataChangeMutex () const
virtual bool	computeLocalToWorldMatrix (Matrix &matrix, NodeVisitor *) const
	Transform method that must be defined to provide generic interface for scene graph traversals.
virtual bool	computeWorldToLocalMatrix (Matrix &matrix, NodeVisitor *) const
	Transform method that must be defined to provide generic interface for scene graph traversals.
Protected Member Functions
virtual	~CameraNode ()
Protected Attributes
OpenThreads::Mutex	_dataChangeMutex
Vec4	_clearColor
GLbitfield	_clearMask
ref_ptr< ColorMask >	_colorMask
ref_ptr< Viewport >	_viewport
TransformOrder	_transformOrder
Matrixd	_projectionMatrix
Matrixd	_viewMatrix
RenderOrder	_renderOrder
GLenum	_drawBuffer
GLenum	_readBuffer
RenderTargetImplementation	_renderTargetImplementation
RenderTargetImplementation	_renderTargetFallback
BufferAttachmentMap	_bufferAttachmentMap
ref_ptr< GraphicsContext >	_graphicsContext
buffered_object< ref_ptr< Object > >	_renderingCache
ref_ptr< DrawCallback >	_postDrawCallback

Detailed Description

CameraNode - is a subclass of Transform which represents encapsulates the settings of a Camera.

Member Typedef Documentation

typedef std::map< BufferComponent, Attachment> osg::CameraNode::BufferAttachmentMap

Member Enumeration Documentation

enum osg::CameraNode::BufferComponent

Enumeration values:

DEPTH_BUFFER

STENCIL_BUFFER

COLOR_BUFFER

COLOR_BUFFER0

COLOR_BUFFER1

COLOR_BUFFER2

COLOR_BUFFER3

COLOR_BUFFER4

COLOR_BUFFER5

COLOR_BUFFER6

COLOR_BUFFER7

enum osg::CameraNode::RenderOrder

Enumeration values:

PRE_RENDER

NESTED_RENDER

POST_RENDER

enum osg::CameraNode::RenderTargetImplementation

Enumeration values:

FRAME_BUFFER_OBJECT

PIXEL_BUFFER_RTT

PIXEL_BUFFER

FRAME_BUFFER

SEPERATE_WINDOW

enum osg::CameraNode::TransformOrder

Enumeration values:

PRE_MULTIPLE

POST_MULTIPLE

Constructor & Destructor Documentation

osg::CameraNode::CameraNode ( )

osg::CameraNode::CameraNode ( const CameraNode & ,

const CopyOp & copyop = CopyOp::SHALLOW_COPY

)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::CameraNode::~CameraNode ( ) [protected, virtual]

Member Function Documentation

void osg::CameraNode::attach ( BufferComponent buffer,

osg::Image * image

)

void osg::CameraNode::attach ( BufferComponent buffer,

osg::Texture * texture,

unsigned int level = 0,

unsigned int face = 0,

bool mipMapGeneration = false

)

void osg::CameraNode::attach ( BufferComponent buffer,

GLenum internalFormat

)

virtual bool osg::CameraNode::computeLocalToWorldMatrix ( Matrix & matrix,

NodeVisitor *

) const [virtual]

Transform method that must be defined to provide generic interface for scene graph traversals.

Reimplemented from osg::Transform.

virtual bool osg::CameraNode::computeWorldToLocalMatrix ( Matrix & matrix,

NodeVisitor *

) const [virtual]

Transform method that must be defined to provide generic interface for scene graph traversals.

Reimplemented from osg::Transform.

void osg::CameraNode::detach ( BufferComponent buffer )

const BufferAttachmentMap& osg::CameraNode::getBufferAttachmentMap ( ) const [inline]

Get the const BufferAttachmentMap, used to configure frame buffer objects, pbuffers and texture reads.

BufferAttachmentMap& osg::CameraNode::getBufferAttachmentMap ( ) [inline]

Get the BufferAttachmentMap, used to configure frame buffer objects, pbuffers and texture reads.

const Vec4& osg::CameraNode::getClearColor ( ) const [inline]

Returns the clear color.

GLbitfield osg::CameraNode::getClearMask ( ) const [inline]

Get the clear mask.

ColorMask* osg::CameraNode::getColorMask ( ) [inline]

Get the ColorMask.

const ColorMask* osg::CameraNode::getColorMask ( ) const [inline]

Get the const ColorMask.

OpenThreads::Mutex* osg::CameraNode::getDataChangeMutex ( ) const [inline]

GLenum osg::CameraNode::getDrawBuffer ( ) const [inline]

Get the draw buffer used at the start of each frame draw.

const GraphicsContext* osg::CameraNode::getGraphicsContext ( ) const [inline]

Get the const GraphicsContext.

GraphicsContext* osg::CameraNode::getGraphicsContext ( ) [inline]

Get the GraphicsContext.

Matrixd osg::CameraNode::getInverseViewMatrix ( ) const

Get the inverse view matrix.

const DrawCallback* osg::CameraNode::getPostDrawCallback ( ) const [inline]

Get the const post draw callback.

DrawCallback* osg::CameraNode::getPostDrawCallback ( ) [inline]

Get the post draw callback.

const osg::Matrixd& osg::CameraNode::getProjectionMatrix ( ) const [inline]

Get the const projection matrix.

osg::Matrixd& osg::CameraNode::getProjectionMatrix ( ) [inline]

Get the projection matrix.

bool osg::CameraNode::getProjectionMatrixAsFrustum ( double & left,

double & right,

double & bottom,

double & top,

double & zNear,

double & zFar

)

Get the frustum setting of a perspective projection matrix.
Returns false if matrix is not a perspective matrix, where parameter values are undefined.

bool osg::CameraNode::getProjectionMatrixAsOrtho ( double & left,

double & right,

double & bottom,

double & top,

double & zNear,

double & zFar

)

Get the othographic settings of the orthographic projection matrix.
Returns false if matrix is not an orthographic matrix, where parameter values are undefined.

bool osg::CameraNode::getProjectionMatrixAsPerspective ( double & fovy,

double & aspectRatio,

double & zNear,

double & zFar

)

Get the frustum setting of a symmetric perspective projection matrix.
Returns false if matrix is not a perspective matrix, where parameter values are undefined. Note, if matrix is not a symmetric perspective matrix then the shear will be lost. Asymmetric matrices occur when stereo, power walls, caves and reality center display are used. In these configurations one should use the 'getProjectionMatrixAsFrustum' method instead.

GLenum osg::CameraNode::getReadBuffer ( ) const [inline]

Get the read buffer for any required copy operations to use.

const osg::Object* osg::CameraNode::getRenderingCache ( unsigned int contextID ) const [inline]

Get the const Rendering object that is used to implement rendering of the subgraph.

osg::Object* osg::CameraNode::getRenderingCache ( unsigned int contextID ) [inline]

Get the Rendering object that is used to implement rendering of the subgraph.

RenderOrder osg::CameraNode::getRenderOrder ( ) const [inline]

Get the rendering order of this camera's subgraph relative to any camera that this subgraph is nested within.

RenderTargetImplementation osg::CameraNode::getRenderTargetFallback ( ) const [inline]

RenderTargetImplementation osg::CameraNode::getRenderTargetImplementation ( ) const [inline]

TransformOrder osg::CameraNode::getTransformOrder ( ) const [inline]

const osg::Matrixd& osg::CameraNode::getViewMatrix ( ) const [inline]

Get the const view matrix.

osg::Matrixd& osg::CameraNode::getViewMatrix ( ) [inline]

Get the view matrix.

void osg::CameraNode::getViewMatrixAsLookAt ( osg::Vec3 & eye,

osg::Vec3 & center,

osg::Vec3 & up,

float lookDistance = 1.0f

)

Get to the position and orientation of a modelview matrix, using the same convention as gluLookAt.

Viewport* osg::CameraNode::getViewport ( ) [inline]

Get the viewport.

const Viewport* osg::CameraNode::getViewport ( ) const [inline]

Get the const viewport.

osg::CameraNode::META_Node ( osg ,

CameraNode

)

void osg::CameraNode::setClearColor ( const Vec4 & color ) [inline]

Sets the clear color.

void osg::CameraNode::setClearMask ( GLbitfield mask ) [inline]

Set the clear mask used in glClear(..).
Defaults to GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT.

void osg::CameraNode::setColorMask ( bool red,

bool green,

bool blue,

bool alpha

)

Set the color mask of the camera to specified values.

void osg::CameraNode::setColorMask ( osg::ColorMask * colorMask )

Set the color mask of the camera to use specified osg::ColorMask.

void osg::CameraNode::setDrawBuffer ( GLenum buffer ) [inline]

Set the draw buffer used at the start of each frame draw.
Note, a buffer value of GL_NONE is used to sepecify that the rendering back-end should choose the most appropriate buffer.

void osg::CameraNode::setGraphicsContext ( GraphicsContext * context ) [inline]

Set the GraphicsContext that provides the mechansim for managing the OpenGL graphics context associated with this camera.

void osg::CameraNode::setPostDrawCallback ( DrawCallback * cb ) [inline]

Set the post draw callback for custom operations to do done after the drawing of the camera's subgraph has been completed.

void osg::CameraNode::setProjectionMatrix ( const osg::Matrixd & matrix ) [inline]

Set the projection matrix.
Can be thought of as setting the lens of a camera.

void osg::CameraNode::setProjectionMatrix ( const osg::Matrixf & matrix ) [inline]

Set the projection matrix.
Can be thought of as setting the lens of a camera.

void osg::CameraNode::setProjectionMatrixAsFrustum ( double left,

double right,

double bottom,

double top,

double zNear,

double zFar

)

Set to a perspective projection.
See OpenGL glFrustum documentation for further details.

void osg::CameraNode::setProjectionMatrixAsOrtho ( double left,

double right,

double bottom,

double top,

double zNear,

double zFar

)

Set to an orthographic projection.
See OpenGL glOrtho for documentation further details.

void osg::CameraNode::setProjectionMatrixAsOrtho2D ( double left,

double right,

double bottom,

double top

)

Set to a 2D orthographic projection.
See OpenGL glOrtho2D documentation for further details.

void osg::CameraNode::setProjectionMatrixAsPerspective ( double fovy,

double aspectRatio,

double zNear,

double zFar

)

Create a symmetrical perspective projection, See OpenGL gluPerspective documentation for further details.
Aspect ratio is defined as width/height.

void osg::CameraNode::setReadBuffer ( GLenum buffer ) [inline]

Set the read buffer for any required copy operations to use.
Note, a buffer value of GL_NONE is used to sepecify that the rendering back-end should choose the most appropriate buffer.

void osg::CameraNode::setRenderingCache ( unsigned int contextID,

osg::Object * rc

) [inline]

Set the Rendering object that is used to implement rendering of the subgraph.

void osg::CameraNode::setRenderOrder ( RenderOrder order ) [inline]

Set the rendering order of this camera's subgraph relative to any camera that this subgraph is nested within.
For rendering to a texture, one typically uses PRE_RENDER. For Head Up Displays, one would typically use POST_RENDER.

void osg::CameraNode::setRenderTargetImplementation ( RenderTargetImplementation impl,

RenderTargetImplementation fallback

)

void osg::CameraNode::setRenderTargetImplementation ( RenderTargetImplementation impl )

void osg::CameraNode::setTransformOrder ( TransformOrder order ) [inline]

void osg::CameraNode::setViewMatrix ( const osg::Matrixd & matrix ) [inline]

Set the view matrix.
Can be thought of as setting the position of the world relative to the camera in camera coordinates.

void osg::CameraNode::setViewMatrix ( const osg::Matrixf & matrix ) [inline]

Set the view matrix.
Can be thought of as setting the position of the world relative to the camera in camera coordinates.

void osg::CameraNode::setViewMatrixAsLookAt ( const osg::Vec3 & eye,

const osg::Vec3 & center,

const osg::Vec3 & up

)

Set to the position and orientation of view matrix, using the same convention as gluLookAt.
