osgSim::OverlayNode Class Reference

OverlayNode is for creating texture overlays on scenes, with the overlay texture being generated by pre rendering an Overlay Subgraph to a texture, then projecting this resulting texture on the scene. More...

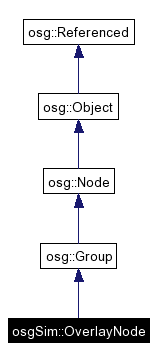

Inheritance diagram for osgSim::OverlayNode:

[legend]List of all members.


Public Member Functions
	OverlayNode ()
	OverlayNode (const OverlayNode &es, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Node (osgSim, OverlayNode)
virtual void	traverse (osg::NodeVisitor &nv)
	Traverse downwards : calls children's accept method with NodeVisitor.
void	setOverlaySubgraph (osg::Node *node)
	Set the overlay subgraph which will be rendered to texture.
osg::Node *	getOverlaySubgraph ()
	Get the overlay subgraph which will be rendered to texture.
const osg::Node *	getOverlaySubgraph () const
	Get the const overlay subgraph which will be render to texture.
void	dirtyOverlayTexture ()
	Inform the OverlayNode that the overlay texture needs to be updated.
void	setContinousUpdate (bool update)
	Set whether the OverlayNode should update the overlay texture on every frame.
bool	getContinousUpdate () const
	Get whether the OverlayNode should update the overlay texture on every frame.
void	setOverlayClearColor (const osg::Vec4 &color)
	Set the clear color to use when rendering the overlay subgraph.
const osg::Vec4 &	getOverlayClearColor () const
	Get the clear color to use when rendering the overlay subgraph.
void	setTexEnvMode (GLenum mode)
	Set the TexEnv mode used to combine the overlay texture with the base color/texture of the OverlayNode's decorate subgraph.
GLenum	getTexEnvMode ()
	Get the TexEnv mode used to combine the overlay texture with the base color/texture of the OverlayNode's decorate subgraph.
void	setOverlayTextureUnit (unsigned int unit)
	Set the texture unit that the texture should be assigned to.
unsigned int	getOverlayTextureUnit () const
	Get the texture unit that the texture should be assigned to.
void	setOverlayTextureSizeHint (unsigned int size)
	Set the texture size hint.
unsigned int	getOverlayTextureSizeHint () const
	Get the texture size hint.
osg::CameraNode *	getCamera ()
	Get the camera used to implement the render to texture of the overlay subgraph.
const osg::CameraNode *	getCamera () const
	Get the const camera used to implement the render to texture of the overlay subgraph.
Protected Types
typedef osg::buffered_value< int >	TextureObjectValidList
Protected Member Functions
virtual	~OverlayNode ()
void	init ()
void	updateMainSubgraphStateSet ()
Protected Attributes
TextureObjectValidList	_textureObjectValidList
osg::ref_ptr< osg::CameraNode >	_camera
osg::ref_ptr< osg::Node >	_overlaySubgraph
osg::ref_ptr< osg::TexGenNode >	_texgenNode
osg::ref_ptr< osg::StateSet >	_mainSubgraphStateSet
GLenum	_texEnvMode
unsigned int	_textureUnit
unsigned int	_textureSizeHint
osg::ref_ptr< osg::Texture2D >	_texture
bool	_continousUpdate
osg::Polytope	_textureFrustum

Detailed Description

Member Typedef Documentation

typedef osg::buffered_value< int > osgSim::OverlayNode::TextureObjectValidList [protected]

Constructor & Destructor Documentation

osgSim::OverlayNode::OverlayNode ( )

osgSim::OverlayNode::OverlayNode ( const OverlayNode & es,

const osg::CopyOp & copyop = osg::CopyOp::SHALLOW_COPY

)

virtual osgSim::OverlayNode::~OverlayNode ( ) [inline, protected, virtual]

Member Function Documentation

void osgSim::OverlayNode::dirtyOverlayTexture ( )

Inform the OverlayNode that the overlay texture needs to be updated.

const osg::CameraNode* osgSim::OverlayNode::getCamera ( ) const [inline]

Get the const camera used to implement the render to texture of the overlay subgraph.

osg::CameraNode* osgSim::OverlayNode::getCamera ( ) [inline]

Get the camera used to implement the render to texture of the overlay subgraph.

bool osgSim::OverlayNode::getContinousUpdate ( ) const [inline]

Get whether the OverlayNode should update the overlay texture on every frame.

const osg::Vec4& osgSim::OverlayNode::getOverlayClearColor ( ) const

Get the clear color to use when rendering the overlay subgraph.

const osg::Node* osgSim::OverlayNode::getOverlaySubgraph ( ) const [inline]

Get the const overlay subgraph which will be render to texture.

osg::Node* osgSim::OverlayNode::getOverlaySubgraph ( ) [inline]

Get the overlay subgraph which will be rendered to texture.

unsigned int osgSim::OverlayNode::getOverlayTextureSizeHint ( ) const [inline]

Get the texture size hint.

unsigned int osgSim::OverlayNode::getOverlayTextureUnit ( ) const [inline]

Get the texture unit that the texture should be assigned to.

GLenum osgSim::OverlayNode::getTexEnvMode ( ) [inline]

Get the TexEnv mode used to combine the overlay texture with the base color/texture of the OverlayNode's decorate subgraph.

void osgSim::OverlayNode::init ( ) [protected]

osgSim::OverlayNode::META_Node ( osgSim ,

OverlayNode

)

void osgSim::OverlayNode::setContinousUpdate ( bool update ) [inline]

Set whether the OverlayNode should update the overlay texture on every frame.

void osgSim::OverlayNode::setOverlayClearColor ( const osg::Vec4 & color )

Set the clear color to use when rendering the overlay subgraph.

void osgSim::OverlayNode::setOverlaySubgraph ( osg::Node * node )

Set the overlay subgraph which will be rendered to texture.

void osgSim::OverlayNode::setOverlayTextureSizeHint ( unsigned int size )

Set the texture size hint.
The size hint is used to request a texture of specified size.

void osgSim::OverlayNode::setOverlayTextureUnit ( unsigned int unit )

Set the texture unit that the texture should be assigned to.

void osgSim::OverlayNode::setTexEnvMode ( GLenum mode )

Set the TexEnv mode used to combine the overlay texture with the base color/texture of the OverlayNode's decorate subgraph.

virtual void osgSim::OverlayNode::traverse ( osg::NodeVisitor & nv ) [virtual]

Traverse downwards : calls children's accept method with NodeVisitor.

Reimplemented from osg::Group.
